DENSO, a pioneer and industry leader in robot development since the 1960s, is the world’s largest manufacturer of small assembly robots, with an installed base of 100,000 units. Unlike most other robot manufacturers, however, DENSO’s primary business is not manufacturing robots, but automotive parts. In fact, DENSO is a leading global supplier of advanced automotive technology, systems and components, employing more than 20,000 of its own robots in its manufacturing facilities. And that’s exactly why DENSO robots are built the way they are. Because in order to succeed in the fiercely competitive automotive sector, DENSO requires its robots to deliver not only the highest levels of productivity, but also the lowest cost of ownership.
Learn more about DENSO by visiting their website.
FEATURED DENSO PRODUCTS

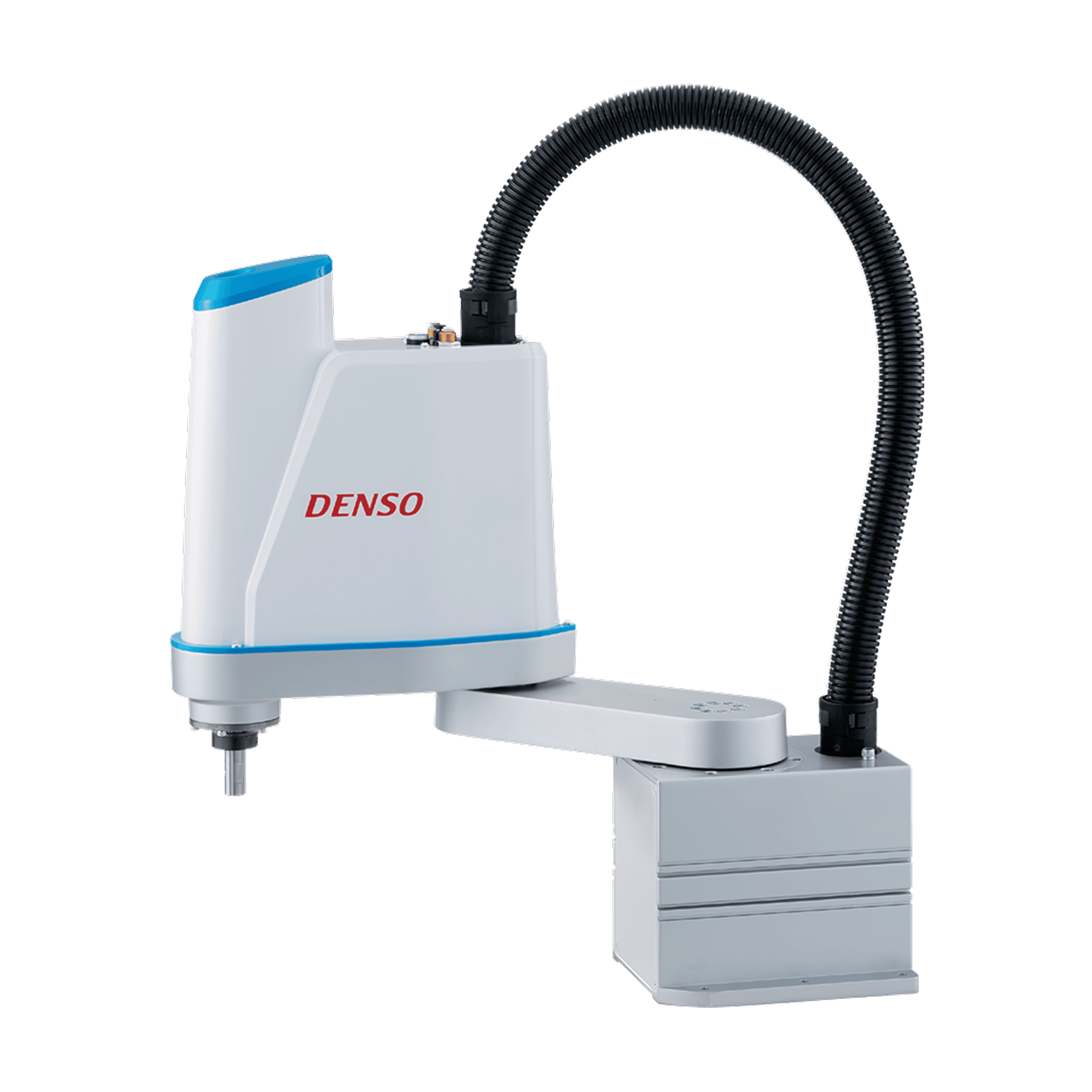

LPH Series
The high-performance, competitively priced LPH 4-axis SCARA robot is an excellent choice for users who are new to automation. Compact and lightweight, LPH handles lighter duty applications with ease, such as electronics, assembly, and pick-and-place to name a few. The LPH is a perfect option for first-time buyers looking to reduce start-up costs for projects that require a shorter, three- to five-year duty lifecycle.
Max Payload
3 kg
Reach
400 mm
Cycle Time
0.45 sec
Repeatability
+/- 0.020 mm

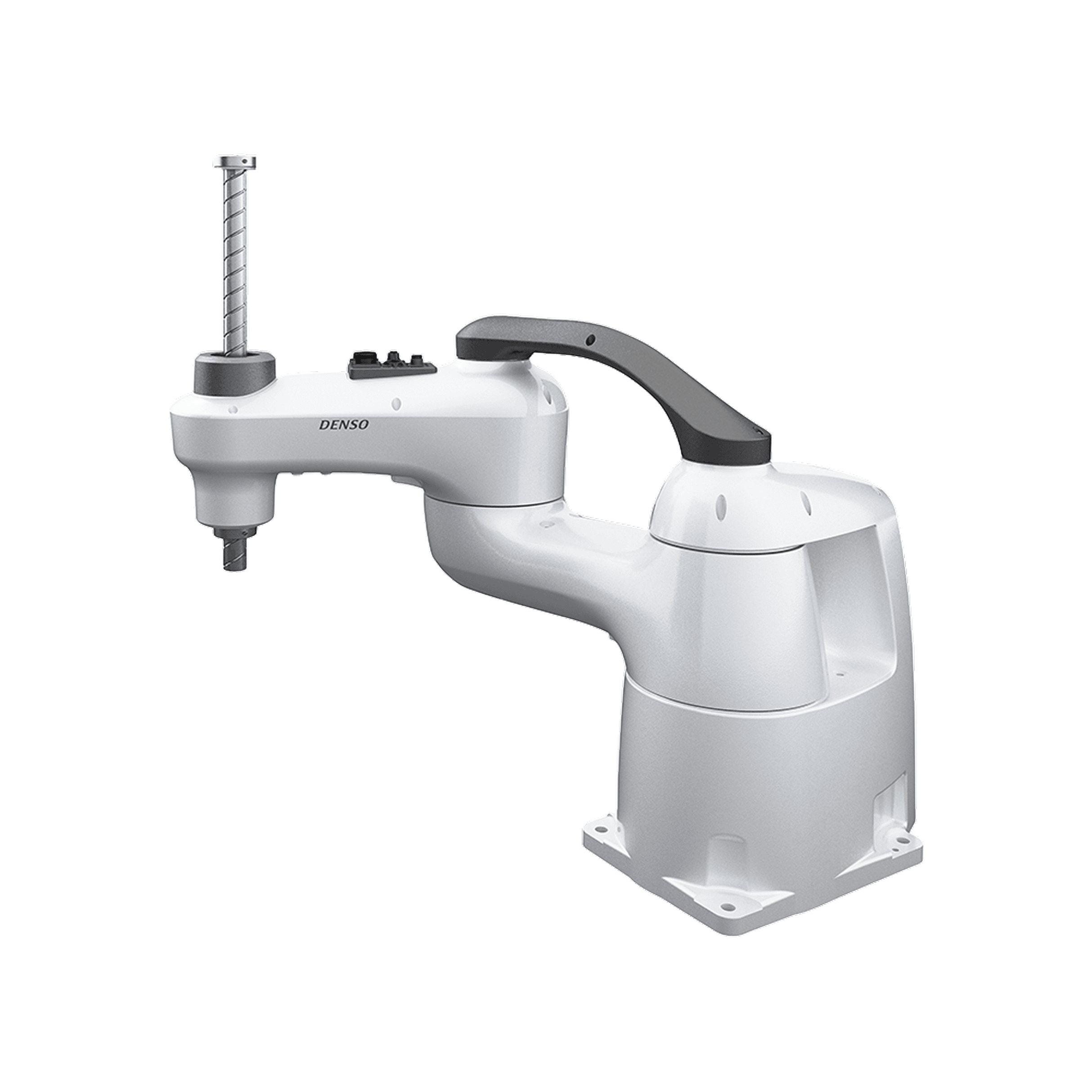

HSR Series
The HSR Series uses advanced vibration control, a newly designed, highly rigid lightweight arm and improved heat dissipation in the base unit to achieve new levels of continuous high-speed performance and repeatability.
Max Payload
8 kg
Reach
480-650 mm
Cycle Time
0.28-0.31 sec
Repeatability
+/- 0.010/.012 mm

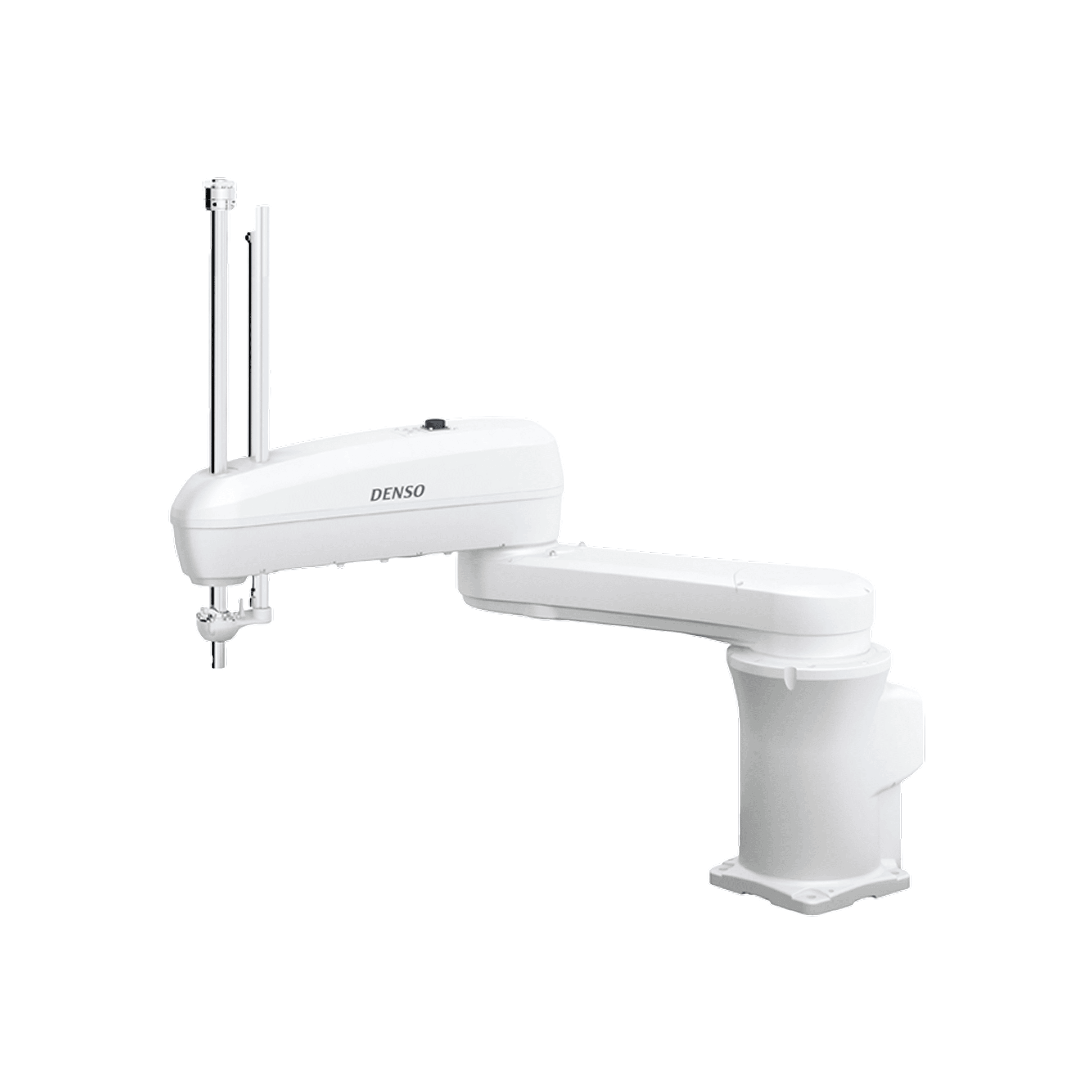

HM Series
The HM Series 4-axis SCARA robots offer outstanding speed and repeatability. Although these small industrial robots have a compact, space saving design, they can handle 20 kg payloads. In addition, their maximum allowable moment of inertia of 0.45 kgm² is six times larger than that of conventional robots, permitting a wide variety of applications. All HM Series robots are available in standard or dust- and mist-proof (IP65) configurations. ANSI and CE compliance allows global deployment. UL listed models are available for both the U.S. and Canada.
Max Payload
10/20 kg
Reach
600-1000 mm
Cycle Time
0.29-0.31 sec
Repeatability
+/- 0.020/.025 mm

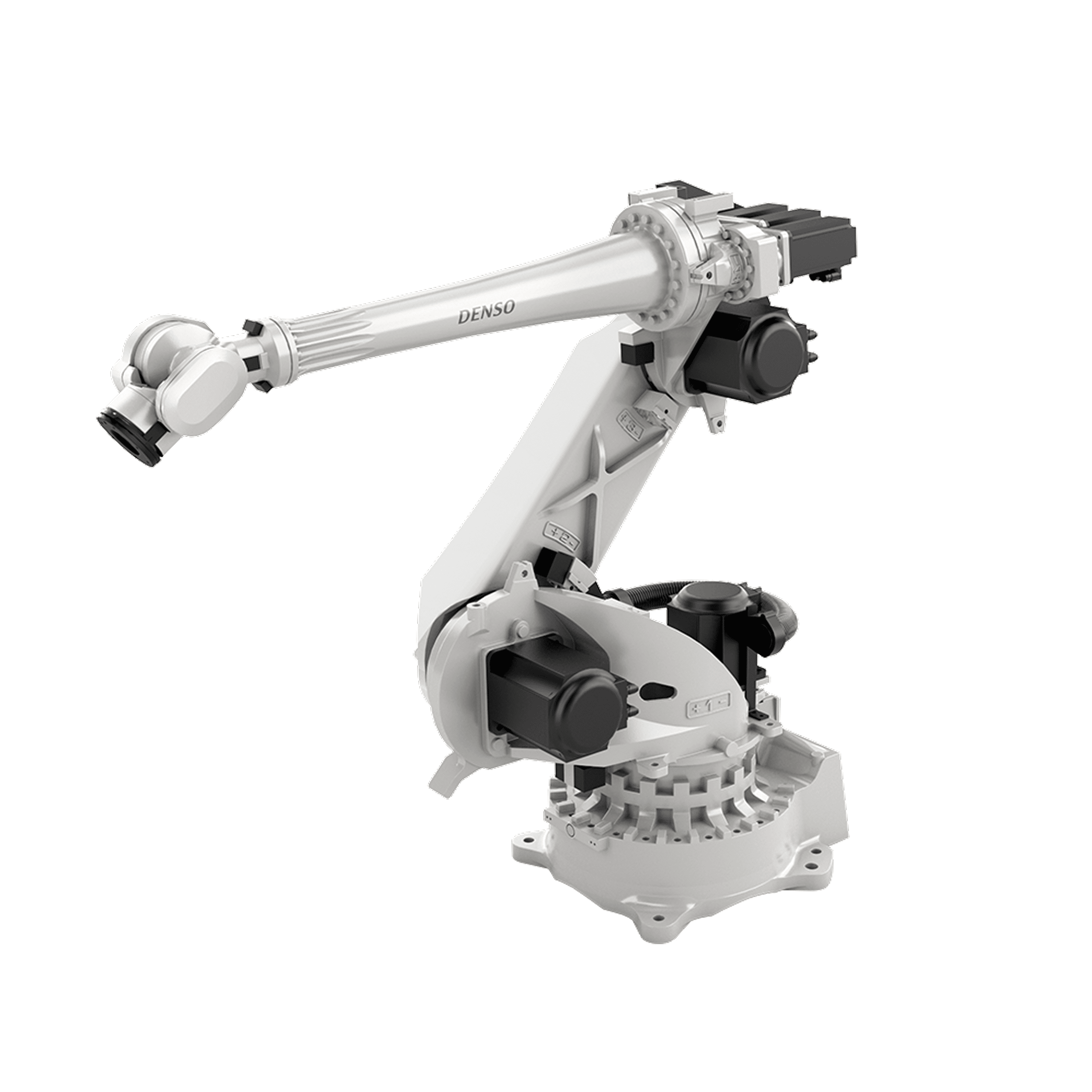

VL Series
With the longest arm reach and highest payload of all DENSO robots, the VL2500 is perfect for palletizing, packaging, and material handling operations. Standard units come with an IP65 protection grade and the wrist with an IP67. 3D visual programming on WINCAPS Plus enables easy and rapid production system launch. With the addition of the new VL large robot, all manufacturing processes can now be automated by DENSO robotics.
Max Payload
40 kg
Reach
2503 mm
Repeatability
+/- 0.060 mm

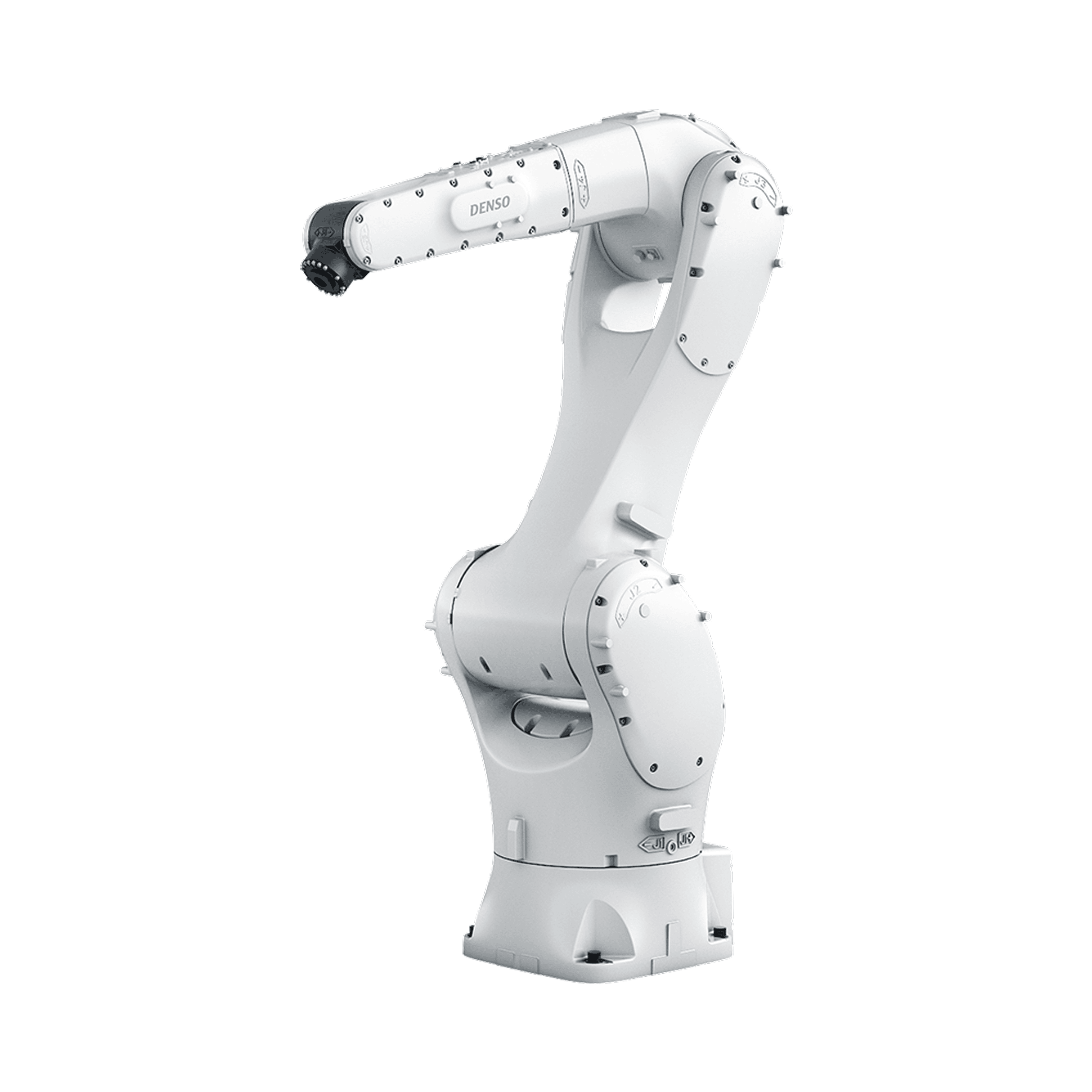

VMB Series
The new VMB series robots are high-performance, versatile units offering a longer arm reach and a higher load capacity than traditional models which make VMB an excellent solution for palletizing, packaging, and material handling. New features include greater air piping, valve and signal line options, as well as new programming options with state-of-the-art functions using new WINCAPS Plus software. VMB offers an IP67 protection grade along with meeting ISO Class 5, which makes them suitable for electric parts, food manufacturing processes, and pharmaceutical and medical devices.
With the addition of the new VMB large robots, all manufacturing processes can now be automated by DENSO Robotics.
Max Payload
25 kg
Reach
1506/1804 mm
Cycle Time
0.29-0.31 sec
Repeatability
+/- 0.050 mm

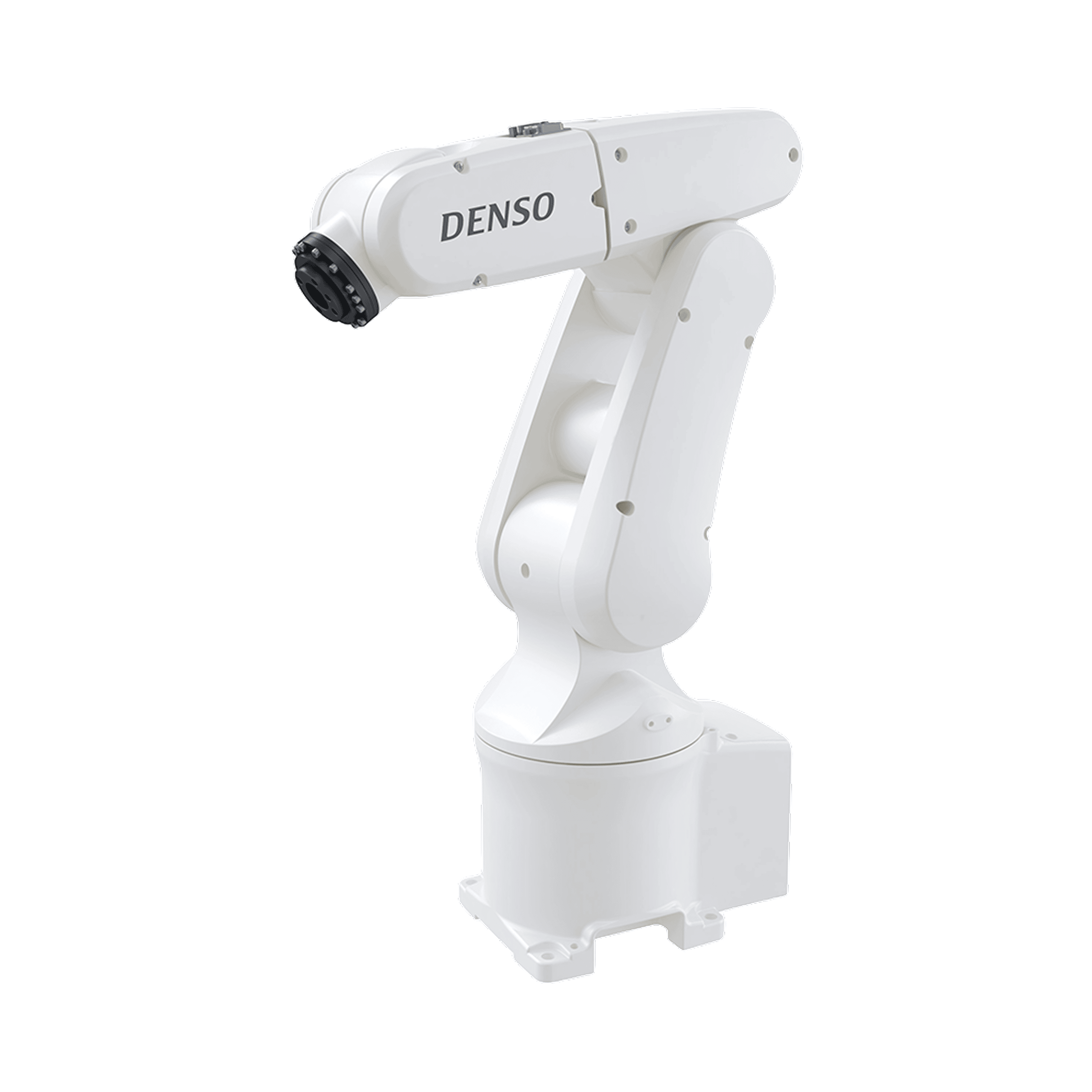

VP Series
The ultracompact VP Series 5- and 6-axis articulated robots offer the highest speed and repeatability in their class. Their small footprint of only 160 x 160 mm (200 mm dia. for the aseptic models) saves valuable facility space and makes integration easy, yet despite their size, they have a large payload capacity. In addition, their highly efficient motors use a maximum of only 80 W of power each, and all motors combined use a maximum of only 300 W, resulting in significant energy savings. The VP Series robots are ANSI/CE compliant, making them suitable for global deployment.
Max Payload
2.5-3.0 kg
Reach
430/432 mm
Cycle Time
0.99 sec
Repeatability
+/- 0.050 mm
