Robotiq

We free human hands from repetitive tasks
Robotiq's tools and know-how simplify collaborative robot applications, so factories can start production faster.

ROBOTIQ

ABOUT Robotiq

Robotiq gives a robot its purpose, function and performance.

Robotiq equips collaborative robots with the tools they need to perform specialized tasks like palletizing, machine tending, screwdriving and sanding, as well as cobot components like adaptive grippers, wrist cameras and software.

Robotiq provides robotics design, integration and operating features that empower people, boost productivity and promote adaptability.

Learn more about Robotiq by visiting their website.

FEATURED FROM ROBOTIQ

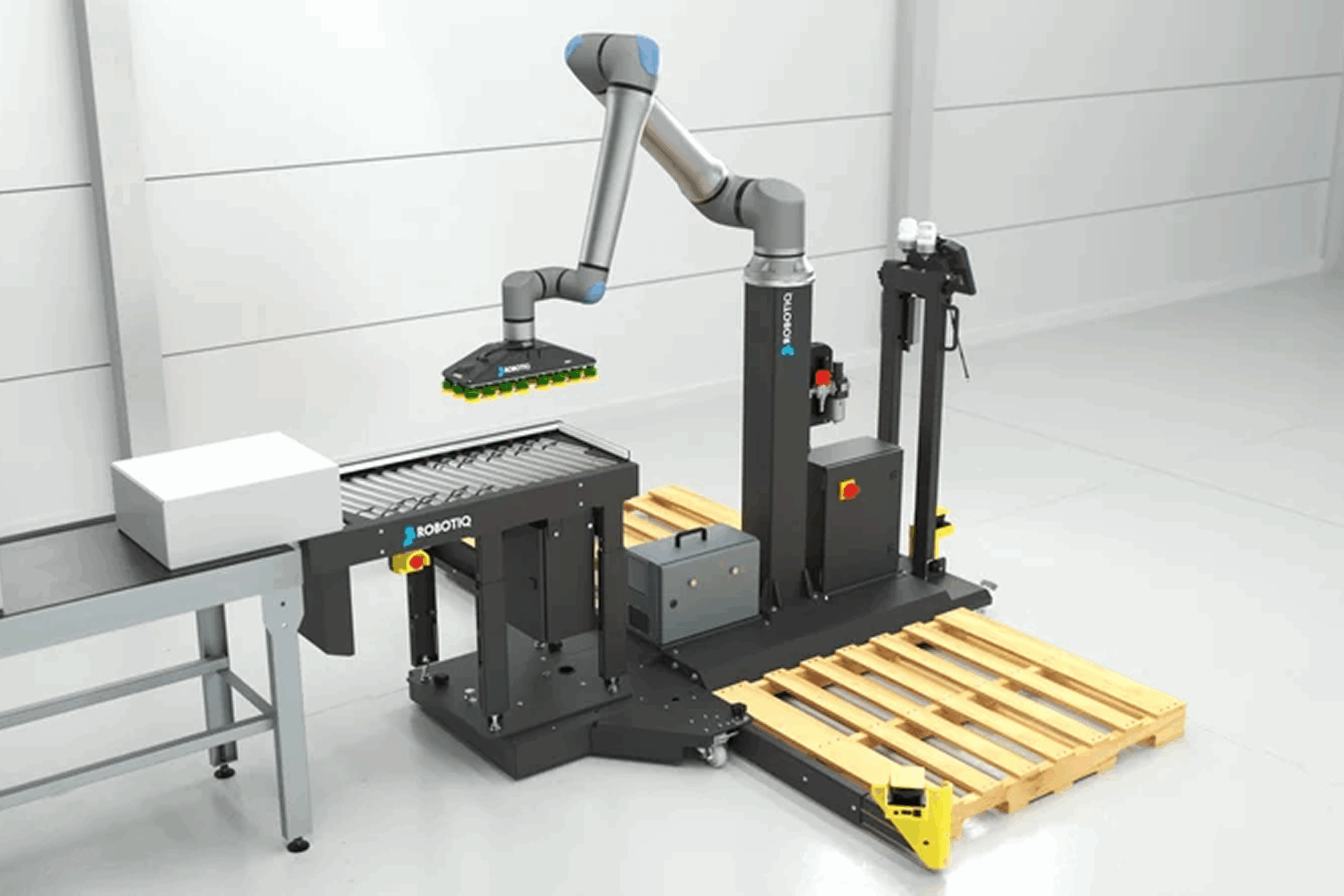

Robotiq Palletizing solution

Seamless integration meets unmatched performace

The Robotiq Palletizing Solution is a turnkey product that can be installed in a matter of days, allowing manufacturers to quickly and permanently resolve end-of-line production instability. Designed to accommodate diverse payloads and pallet heights, the Palletizing Solution meets various palletizing application needs with ease and adaptability.

Robotiq’s customers worldwide have experienced major productivity surges in a short period and earned an ROI within 12 months.

Download the brochure

MODELS
Over 500 Robotiq Palletizing Solutions have been implemented worldwide, including in the food and beverage, consumer goods, pharmaceutical, automotive, construction and appliance sectors.

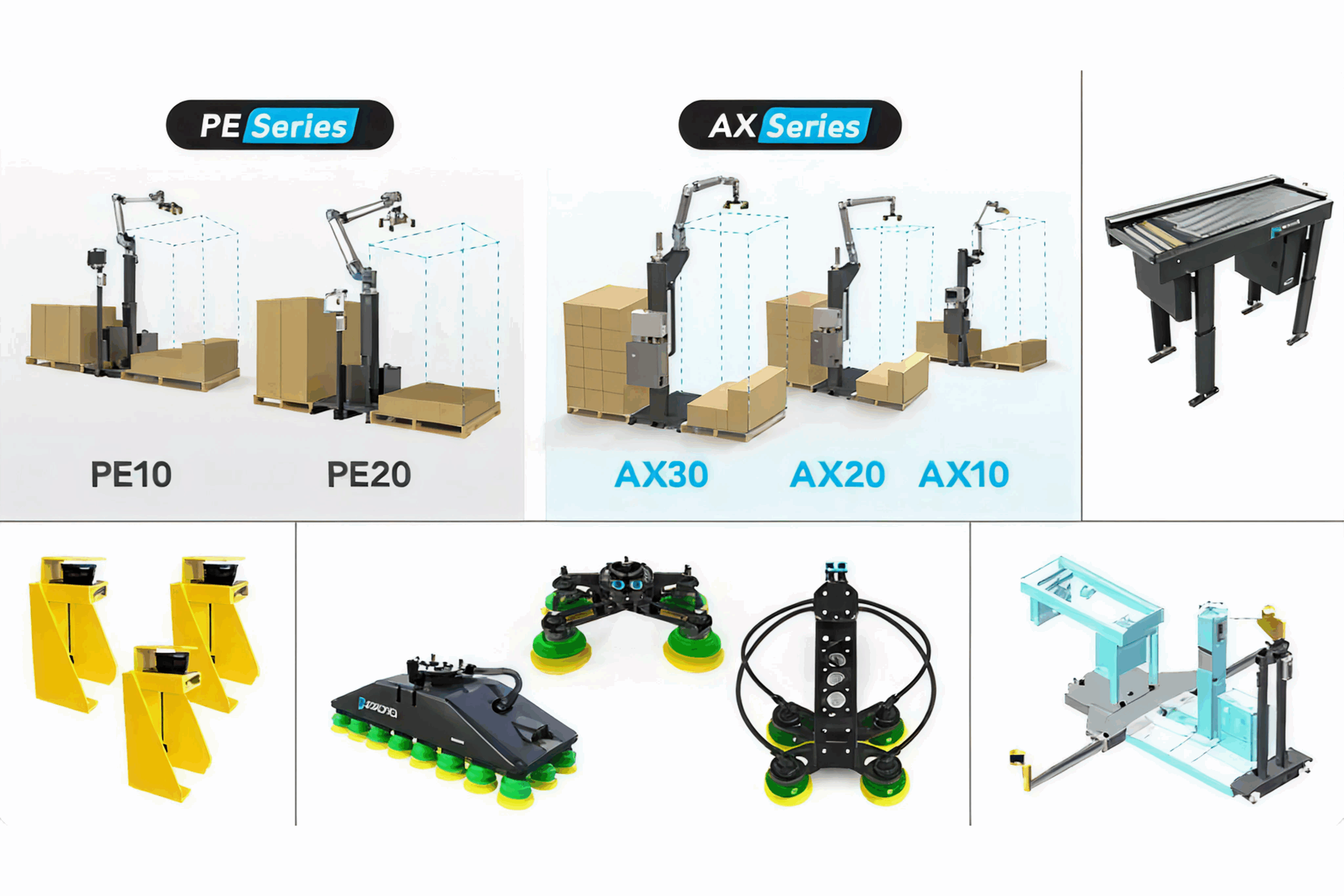

AX SERIES - FEATURES A LINEAR AXIS

AX SERIES

AX10

  • Stacking height 2,750 mm (108 in.)
  • Cycle time 13 cycles/min
  • Payload 11.5 kg (25 lbs)
  • Typical footprint 2,700 x 1,766 mm (106 x 70 in.)
  • Ideal for handling a wide variety of box sizes and pallet heights

AX SERIES

AX20

  • Stacking height 3,000 mm (118 in.)
  • Cycle time 10 cycles/min
  • Payload 18 kg (40 lbs)
  • Typical footprint 2,900 x 1,766 mm (114 x 70 in.)
  • Ideal for stacking heavy boxes and buckets at various heights

AX SERIES

AX30

  • Stacking height 2,750 mm (108 in.)
  • Cycle time 10 cycles/min
  • Payload 27 kg (60 lbs)
  • Typical footprint 2,900 x 1,766 mm (114 x 70 in.)
  • Ideal for stacking heavy boxes and buckets at various heights
PE SERIES - FEATURES OR ADJUSTABLE PEDESTAL

PE SERIES

PE10

  • Stacking height 1,550 mm (60 in.)
  • Cycle time 13 cycles/min
  • Payload 11.5 kg (25 lbs)
  • Typical footprint ⪆ 2,700 x 1,766 mm
  • Ideal for less frequent changes in box size and pallet height.

PE SERIES

PE20

  • Stacking height 2,150 mm (84 in.)
  • Cycle time 13 cycles/min
  • Payload 18 kg (40 lbs)
  • Typical footprint ⪆ 2,900 x 1,766 mm
  • Ideal for heavier loads and low to moderate pallet heights.

COMPONENTS

HAND-E SERIES

Series of precise adaptive grippers for manufacturers in high-mix, low-volume environments. Ideal for machine tending, pick and place and assembly. The sealed and robust design ensures reliability in the toughest manufacturing conditions—including CNC machining. Its configuration is well-suited to production settings that involve minimal variation in object sizes.

Download the brochure

PE SERIES

Hand-E

PAYLOAD
10 kg (22 Lbs)
TOOLING WEIGHT
1 kg (2 lbs)
ENERGY SOURCE
Electricity, connected to robot wrist (24V, 2 A)
CONTROL PARAMETERS
Object detection, position, speed and force
LIFESPAN
5,000,000 cycles
STROKE
50 mm (2 in.)
GRIP FORCE
20 to 185 N (4.5 to 41 lbf)
CLOSING SPEED
150 mm/s (5.9 in./s)
REPEATABILITY
0.025 mm (0.9 in.)
INGRESS PROTECTION (IP) RATING
IP67
OPERATING TEMPERATURE
-10 to 50 °C (14 to 122 °F)

PE SERIES

Hand-E C10

PAYLOAD
10 kg (22 lbs)
TOOLING WEIGHT
1.5 kg (3.3 lbs)
ENERGY SOURCE
Electricity, connected to robot wrist (24 V, 2 A)
CONTROL PARAMETERS
Object detection, position, speed and force
LIFESPAN
5,000,000 cycles
STROKE
40 mm (1.57 in.)
GRIP FORCE
175 N (39.34 lbf)
CLOSING SPEED
14 to 107 mm/s (0.55 to 4.214 in./s)
REPEATABILITY
0.025 mm (0.9 in)
INGRESS PROTECTION (IP) RATING
IP67
OPERATING TEMPERATURE
-10 to 50 °C (14 to 122 °F)

Find out why robotiq is best in class

Performance and Robustness
Robotiq cobot solutions and components are developed to maximize performance and robustness. We only use industrial grade parts and implement proven design that optimize the longevity of our customer cobots.
Seamless Integration
Robotiq uses standardized methods and tools based on lean manufacturing principles that eliminate non-value-added tasks at every stage of robotic cell deployment. Our customers deply faster, gain productivity more quickly, and achieve a quicker ROI
Easy of Use and Flexibility
Robotiq cobot solutions are designed to be user-friendly, requiring no robotic expertise, and our components are true “plug & play.” Once installed, manufacturers can easily program the system themselves, eliminating their reliance on robotic integrators for system adaptations.
Local Support
Robotiq supports manufacturers throughout the deployment process and beyond, ensuring seamless operation once the system is up and running. With the industry's largest network of certified distribution partners, we provide local support and expertise to our customers worldwide.

LET'S CHAT

Robotiq RESOURCES

Downloads

TitleDownload Link
Hand-E Adaptive Gripper Product Sheet

CLICK TO DOWNLOAD

Tableau Comparative Palletizing Solution

CLICK TO DOWNLOAD
